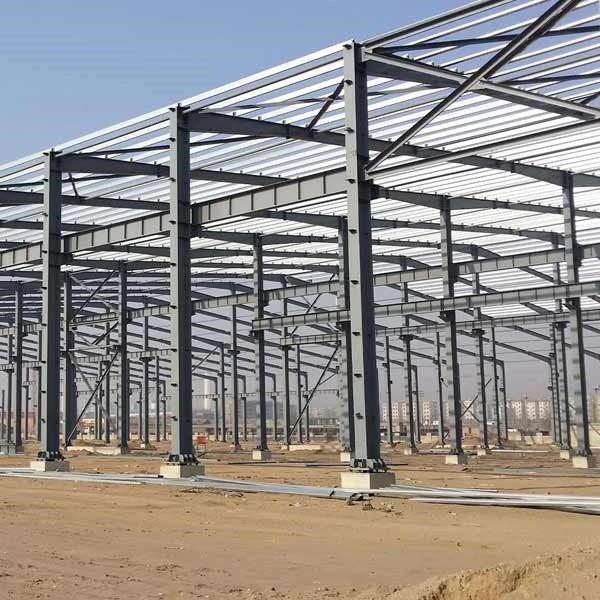

Steel Structure Warehouse Factory
Used for logistics, manufacturing, agriculture, and emergency storage.
Prefabricated in our factory, shipped in containers, and bolted on site.
No welding required
Save time vs concrete
Expandable
Steel Structure Warehouse Factory are modern storage buildings constructed with steel frame systems. They are widely used in logistics, manufacturing, agriculture, and other industries due to their efficiency, flexibility, and durability.
Thanks to modular design and prefabrication, steel structure warehouses can quickly adapt to different storage requirements - from small tool storage units to large distribution centers. At the same time, they offer an excellent balance of cost-effectiveness, structural performance, and sustainability.
Products Parameter
| Parameter | Standard Range |
| Clear span | 10m – 45m (no interior columns) |
| Eave height | 4m – 12m |
| Bay spacing | 6m / 7.5m / 9m |
| Wind load resistance | Up to 130 km/h (adjustable) |
| Snow load capacity | Up to 1.5 kN/m² (customizable) |
| Seismic grade | Grade 8 (design adjustable) |
| Roof slope | 5% – 10% |
| Roof/wall panel | 0.5mm color steel / sandwich panel (PU / PIR / rock wool) |
| Crane beam | Optional for overhead crane (1t – 20t) |
All parameters can be adjusted based on local weather, soil condition, and storage needs. Whether you require thermal insulation for cold storage or structural support for heavy-lifting cranes-we can provide a design solution tailored specifically to your needs. Please contact us for more information or to request a quote.
Product Details
High-strength hot-rolled H-beam or square steel tube
Welded + bolted connections for extra stability
Gable frame or portal frame design for wind & seismic resistance
Wall & roof: color steel sheet, aluminum-zinc coated sheet, or sandwich panel (rock wool / PU / PIR)
Functions: waterproof, heat insulation, fire-resistant in one
Custom doors: rolling shutter door, sliding door, or sectional door
Skylights & louvered windows for natural light and ventilation
Crane beam support (for 1–20 ton overhead crane)
Pallet racking support structure
Pre-wired conduit holes for lighting and fire alarm systems
Rainwater downpipe system included
Foundation type: independent footing, strip footing, or pile (based on your soil)
Floor: high-strength concrete (we have anchor bolt layout drawing)
Optional: anti-static coating or wear-resistant floor

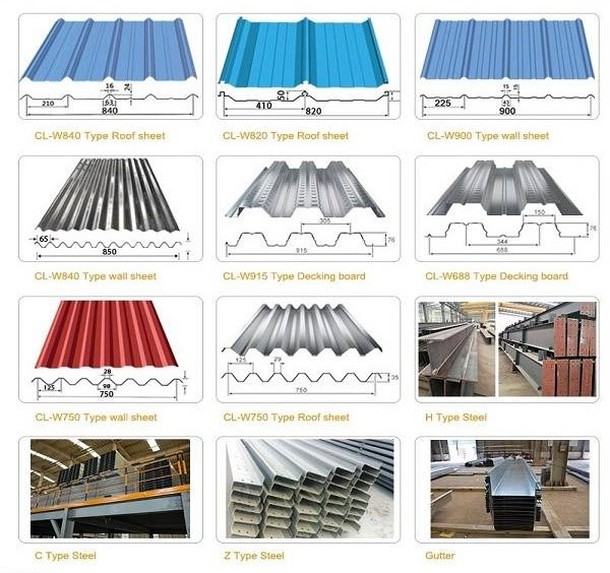

Materials for Steel Structure Warehouse Factory
Product Advantages
Fast Construction: Prefabricated components and bolted connections allow faster installation compared to traditional concrete structures.
Lower Overall Cost: Reduced on-site labor, lower equipment requirements, and less foundation material help minimize total project costs.
Easy Expansion: The modular structure allows additional bays to be added easily as storage needs grow.
Durable & Low Maintenance: Anti-corrosion coatings provide long-term protection, while sandwich panels offer excellent resistance to rust and weathering.
Energy Efficient: Insulated wall and roof panels help reduce heating and cooling costs for temperature-controlled storage facilities.
Eco-Friendly: Steel is 100% recyclable, and the construction process generates minimal on-site waste.
Applications
Steel Structure Warehouse Factories are used in many industries. Here are the most common ones:
- Logistics & Warehousing: E-commerce distribution centers, port container yards, cold storage facilities
- Industrial & Manufacturing: Heavy equipment storage, raw material and finished goods warehouses, light assembly workshops
- Agriculture: Agricultural machinery storage, grain drying and storage facilities, greenhouse support structures
- Emergency & Reserves: Disaster relief supply depots, military reserve warehouses
- Commercial: Supermarket distribution centers, automotive 4S dealership repair and parts warehouses
Certifications

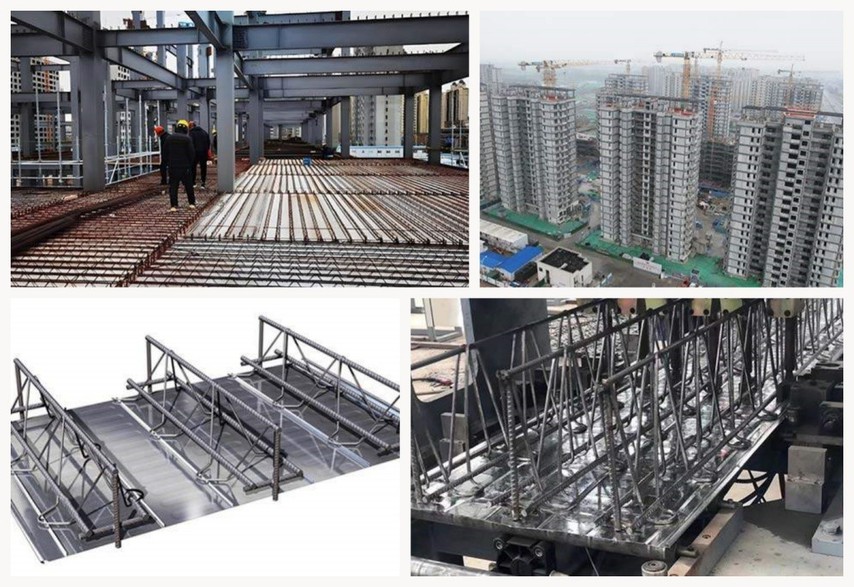

Case Studies
